Brand | OSM |
Model | Rage Plus Garbage Tipper |
Variant Name | Rage + Garbage Tipper |
Warranty | Battery : 3 Years/80,000 Km (Whichever Is Earlier) # |
Motor Power | 5.8 Kw |
Battery Capacity | 10.8 Kwh |
Brake (Front & Rear) | Hydraulic |
About Product |

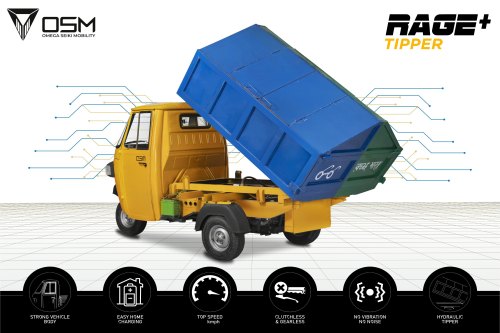

The main features of OSM Rage + Garbage Tipper E Rickshaw are given below
- Stronge Vehicle Body
- Easy Home Charging
- Clutchless & Gearless
- No Vibrate No Voice
- Garbage Container (Closed Type) : Bottom Pannels 1.2 mm GI, Sheets Side Panels And 2 Separate Doors In 0.8 mm GI Sheets
- Capacity Volume : 500 Kg
- Tipper Angle : 41 Degree
- Garbage Partition : 60:40 Vertical Partition: 60% For DryGarbage & 40%For Wet Garbage
- Paint : Powder-Coated Green Colour For Wet Garbage & Blue Colour For Dry Garbage
- Pump Capacity : 3 cc Pump
- Pump Operating Drive : Power Pack 48 V Dc
- Oil Tank Capacity : 8 Litres
- Dirction Control System : Manual DCV
- Working Pressure : 70 to 100 Bar
- PRV Setting : 110 Bar
- Hydraulic Hoses : 3/8 R1
- Cylinders : Finely Honed And Hard Chrome Single Acting Cylinder
- GPS Device : Optional
|
# For Warranty detail contact with Authorized Dealer/Manufacturer. |
